CD-2SE
Precision Soldering
데모신청하기
CD-2SE

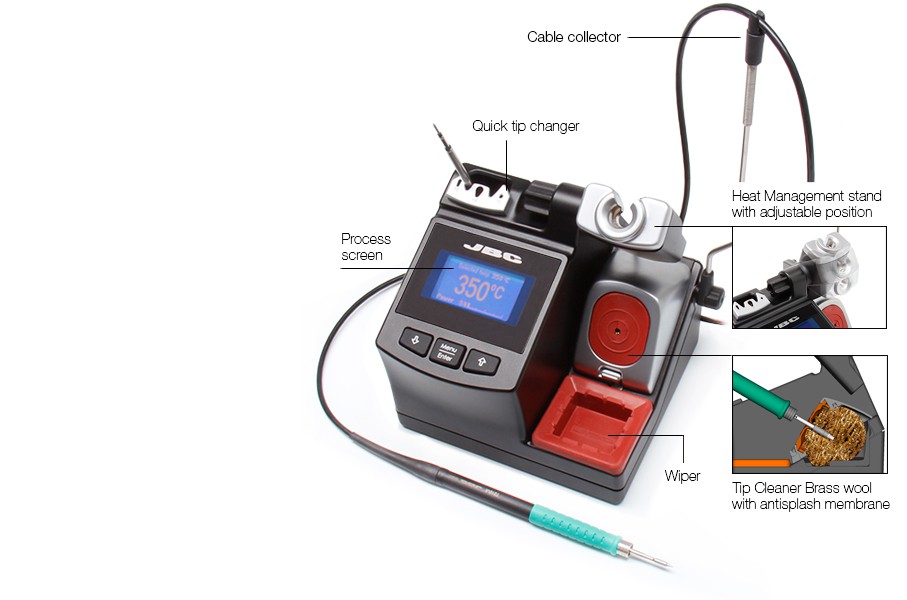

230 V - Precision Soldering station
Specifications
Weight : 2.671 kg (5.88 lb)
Size : 150x175x145 mm
Voltage(AC) : 230V
Input Fuse : 1A
Output Peak Power : 40W / 23.5V
Temperature selection : 90-450 ºC / 190-840 ºF
Tip to ground resistance : < 2 ohms
Tip to ground voltage : < 2mV RMS
Ambient operating temp. : 10-40 ºC / 50-104 ºF
Package weight : 3.095 kg (6.82 lb)
Package dimensions : 234 x 234 x 258 mm
Size : 150x175x145 mm
Voltage(AC) : 230V
Input Fuse : 1A
Output Peak Power : 40W / 23.5V
Temperature selection : 90-450 ºC / 190-840 ºF
Tip to ground resistance : < 2 ohms
Tip to ground voltage : < 2mV RMS
Ambient operating temp. : 10-40 ºC / 50-104 ºF
Package weight : 3.095 kg (6.82 lb)
Package dimensions : 234 x 234 x 258 mm
Product Composition
Cartridges : C210001, C210008Control Unit : CD with tip cleaning system
Tools : T210-A Precision Purpose Handle
Accessories : S0354 Sponge 36x69mm, CL6210 Brass wool
